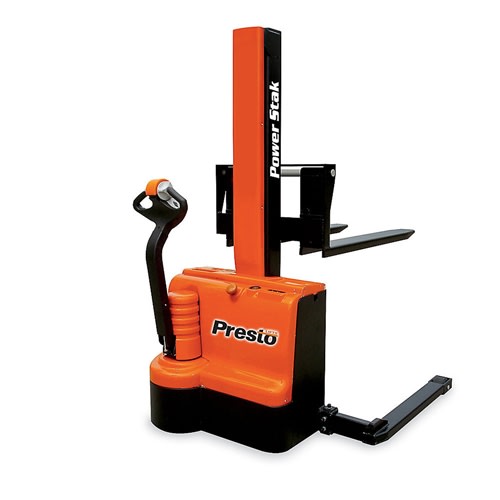

The power stacker can be used as a dedicated stacker, or as a combination stacker/work positioner, or as a transporter. The ergonomic features make it a safe and easy to operate and other features include: smooth polyurethane drive wheel that is fully shrouded to protect the operators feet, a battery status indicator and charger controls, straddle legs with simple user adjustability, and also has an adjustable fork carriage that can be quickly repositioned. The ergonomic handle has comfort group controls and switch redundancy for left or right hand operation and auto reversing "belly bump" switch to protect against operator accidents while working in tight quarters.
- Presto Lifts Limited Power Stacker Warranty Policy:
- Presto Lifts warrants the Power Stacker against defects on the mast, fork carriage, chains, pumps, DC motors, controllers, cylinders and wiring harnesses from faulty material and workmanship for a period of one (1) year from the date of invoice.
- All wear items such as batteries, wheels, motor brushes, seals, bearings, hydraulic hoses, all switches, battery chargers and forks have a limited warranty against defects in faulty material and workmanship for a ninety (90) day period from the date of invoice and 30 day limited warranty on labor. Please note that prior authorization from Presto Lifts is required on all warranty work.
Load Capacity: 2200 Lbs.
Load Center: 24" (no loads over 48" in depth)
Lowered Height: 2-3/4"
Raised Height: 62"
Overall Dimensions: 80"H x 58"W x 69"L
Forks: 42"L x 6"W (adj. 12" to 27" O.D.)
Base Legs: I.D. 40-50"/O.D. 48-58"
Wheels: Drive 10D x 3"W Smooth Polyurethane
Stability 6"D x 2"W Smooth Polyurethane
Load 4"D x 3"W Smooth Polyurethane
Drive Motor: 24 VDC - 750W Motor
Lift Motor: 24 VDC - 2200W Motor
Battery: Two VDC, 75 A/H AGM Sealed Battery
Onboard Battery: Input Voltage 100-240 VAC,
Frequency 50/60 HZ
Charger: Output Voltage 24 VDC @ 10 Amp
Travel Speed: W/O Load 3.6 MPH (approx.)
With Load 3.4 MPH (approx.)
Turtle Speed: 50% of Normal Travel Speed
Auto Reverse Switch: "Belly Bump" Reverses
Direction When Activated
|
